2-12 Floors Paper Core Tube Making Machine 2 Wheel Drive PLC Control CE Approved

    Buy cheap 2-12 Floors Paper Core Tube Making Machine 2 Wheel Drive PLC Control CE Approved from wholesalers

    Buy cheap 2-12 Floors Paper Core Tube Making Machine 2 Wheel Drive PLC Control CE Approved from wholesalers
    • Buy cheap 2-12 Floors Paper Core Tube Making Machine 2 Wheel Drive PLC Control CE Approved from wholesalers

    2-12 Floors Paper Core Tube Making Machine 2 Wheel Drive PLC Control CE Approved

    Ask Lasest Price
    Brand Name : Quanheng
    Model Number : 100
    Certification : CE,ISO
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 100SETS/YEAR
    Delivery Time : 30DAYS
    • Product Details
    • Company Profile

    2-12 Floors Paper Core Tube Making Machine 2 Wheel Drive PLC Control CE Approved

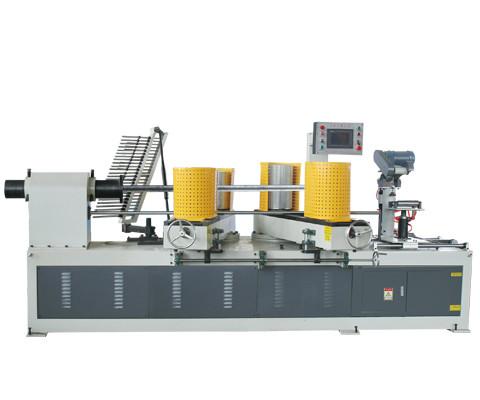

    QHPT-100 Automatic Paper Tube Making Machine


    Technical parameterControl system
    Roll tube paper layer2-12 floorsInverterAn Rui Ji products
    Paper tube diameter30-100 (mm)The main implementation of the device (contactors, etc.)Chint product
    Paper tube thickness1-8 (mm)Signal element (proximity switch, etc.)Shanghai industrial products
    Tube speed0-25 (m / min)Pneumatic Componentssuo pai /tian ao
    Fixed-length modeLight Control (Infrared)Synchronous controlpneumatic
    Winding machine headTwo machine headPLC controllerweikong products
    Cutting methodSingle round knife cuttingHMIKunlun products
    Core mold fixed wayFlange plus tightEmergency stop buttonJiangyin Yangtze River brand
    Glue wayDouble-sided adhesive
    control methodFrequency
    Input voltage380V / 220V
    Number of operators1-3 peopleConfiguration device
    Size (mm)Drop tube rackautomatic
    Host Size: L * W * H3300mm*1700mm*1900mmBelt adjustmentAdjust manually
    Land area: length * width1500mm*7mmPaper frame swing angleAdjust manually
    Hub diameter242mmFor glueAutomatic stainless steel heating plastic tank
    Hub height360mmTape for lubrication oilAutomatic lubrication of stainless steel basin
    Minimum track1000mmTension adjustmentMechanical adjustment
    The biggest argument1250mmPaper holder typeRight-angle fixed lifting on the paper holder
    total weight3100kgRoll mandrel1
    Drive systemRoll tube belt1 article
    monitor rate7.5kw Shanghai strong speedApplicationsHave
    Host speed1400r / minBottom, surface paper deviceStainless steel paper holder, paper cone
    The maximum wheel speed48r / minUnder the rackStainless steel plate
    Hub output torque6000N.mHostStainless steel countertops
    Reducer modelsWDO155 Hangzhou XiaoshanPaper guidestainless steel pipe
    Drive chain model12A * 2
    Wheel drive2 wheel drive
    Cutter motor0.4kw gear motor Shanghai Ott
    BearingUniversal bearings
