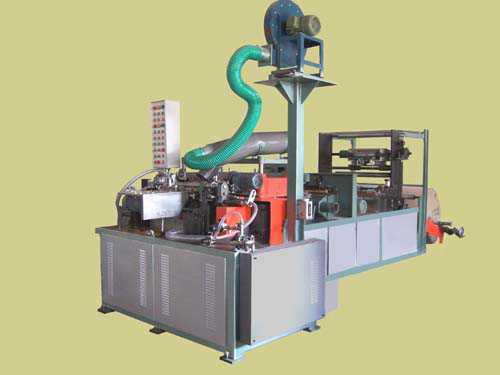

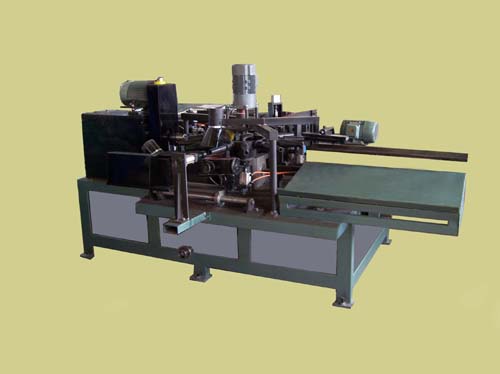

Automatic Conical Paper Bobbin Production Line / Paper Core Tube Making Machine

An automatic production line for paper bobbins, with the entire production process controlled by a PLC system and the main driving force transmitted through a cam mechanism for time control purposes. It uses a range of electromechanical control technologies such as post operation control, high/low two-speed inverter control, photoelectric control, approach control and pneumatic delay control to ensure less manpower, low energy consumption, high efficiency and top quality production. It is suitable for the production of various conical bobbins.

Automation Flow Chart

Roll paper →Edging →Shape Cutting → Bobbin Winding → Drying → Trimming →Notching V → Grinding → Line Pressing → Reversing → Napping → Finishing

Main Technical Data:

Overall Power: 49.2KW The number of operators:one
Bobbin-making Speed: 25-50 cone/min
Overall Dimensions: 14,000mm*6,000mm
