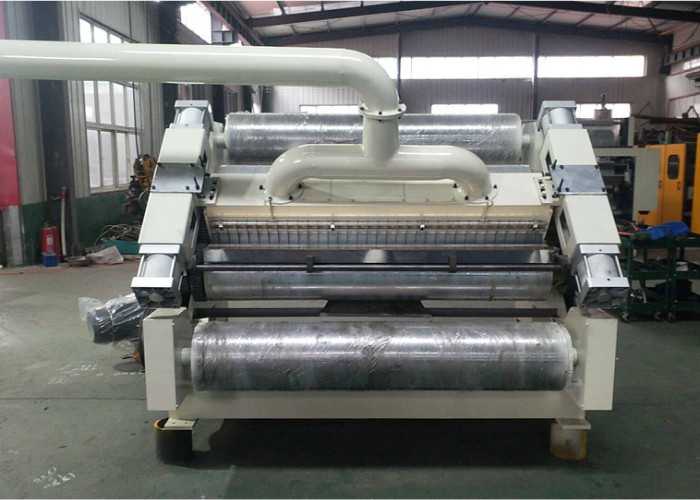

Single Facer Machine

Technical Parameters

Expiry width: 1600mm

Temperature: 160－200℃

Total power: 15kw

Heating method: steam heating

Structural Features

The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.

The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.

The width of suction slot of lower corrugated roller is not more than 2.6mm, able to reduce the stripe mark on single side corrugated cardboard.

The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.

This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.

The glue roller surface is treated with special mesh nicking and chrome-plating.

Upper and lower corrugated rollers are made of 48CrMo high quality alloy steel. After heat-treatment, the rigidity is HRC58-62.The surface is grinded and chrome plated．

Flute profile: optional by customers.

​ Parameters of Main Parts

Upper corrugated roller: Φ280mm Lower corrugated roller: Φ280mm

Produced in Beijing

Pressure Roller: Φ280mm 48# seamless steel pipe, quenched

Produced in Hebei

Glue Roller: Φ215mm 48# seamless steel pipe, surface treated with special mesh nicking and chrome-plating

Glue Scraping Roller: Φ136mm 20# seamless steel pipe

Place of origin: Chengdu, Sichuan Province

Pre-heating Roller: Φ296mm 20G Jigang steel wall thickness: 16mm

Materials and Bought-in Components

Side Wallboards and base: HT200 Place of origin: Hebei

Base of transmission parts: welded by channel

Electric motors:

Main electric motor:5.5kw 1 set, continuous working

Suction fan: 5.5kw 1 set, continuous working

Spare Parts that need to buy from others and main materials:
