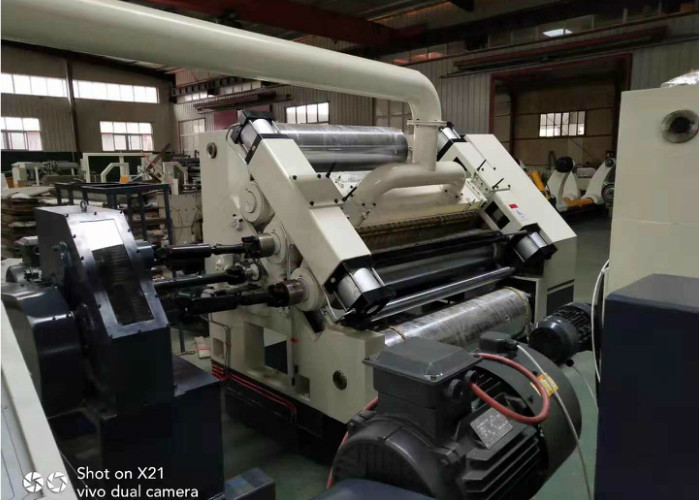

Carton Cardboard 280 Type Single Facer Corrugated Making Machine

Technical Parameters

• Expiry width: 1500mm

• Temperature: 160－200℃

• Total power: 90kw

• Heating method: steam heating

• Working speed :60-80m/min

Structural Features

• The paper guiding adopts wind adsorption, keeping the stability of flutes under the condition of high speed.

• The corrugated paper is adsorbed to the middle corrugated roller to form a negative pressure zone of 180°and then to finish the rolling of corrugation through the vacuum box by fan.

• The width of suction slot of lower corrugated roller is not more than 2.6mm, able to reduce the stripe mark on single side corrugated cardboard.

• The reducer casing adopts oil bath lubrication and closed gear transmission, reducing the vibration of machine.

• This machine adopts auto-cycle glue supply and pneumatic control glue supply and return, making it be characterized by buffering effect.

• The glue roller surface is treated with special mesh nicking and chrome-plating.

• Upper and lower corrugated rollers are made of 48CrMo high quality alloy steel. After heat-treatment, the rigidity is HRC58-62.The surface is grinded and chrome plated．

• Flute profile: optional by customers.
