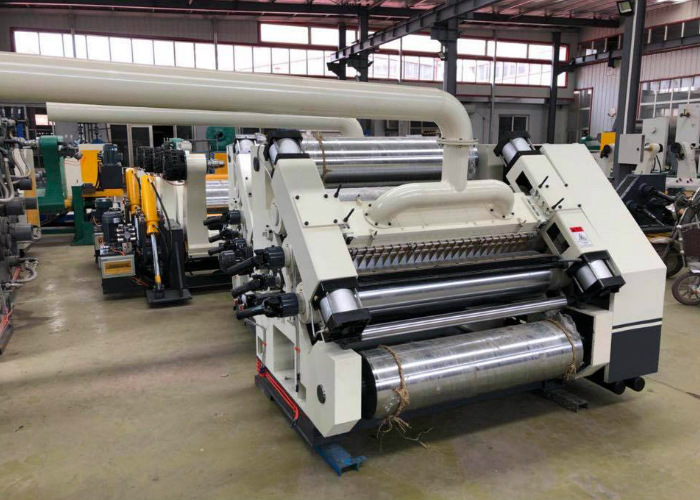

QHSF-280E-1600 Single Facer Machine

Main components parameters:

• Design speed:100m/min
• Working speed:60-80m/min
• Heatng type:Electric(quartz tube)
• Power:66.5KW(main motor:7.5kw;belower:11kw;heating system:48kw)
• The main corrugated roll diameter:280mm
• The pressure roller diameter:284mm
• Glue roller diameter:215mmand
• Glue Scraping roller:110mm
• Preheater roller:320mm

Features:

• Electric adjust the glue width.
• The paper guide mode using wind adsorption,ensure the paper feeding stable
• By the fan through the corrugated paper adsorption chamber in the corrugated roller form a negative pressure zone 180 degrees scope, to complete the corrugated rolling
• The corrugated roller suction slot width is less than 2mm
• Gear box transmission
• Using automatic cycle for rubber, pneumatic glue and reset
• The up and down corrugated roller adopt 48CrMo.
• Flute type: Depend on customer.

Cangzhou Quanheng Carton Machinery Co.,Ltd

The cangzhou quanheng carton machinery co.,ltd is a company that a profession be engaged in the three and five corrugating machines etc.A capital beijing with south, jinan with north, the landand-water transportation is very convenient. Is a furniture contain the mechanical profession in machine,printing in production cardboard box business enterprise of the equal scale. The products have been sold in many countries regions such as europe, Ffrica,Middle east and south-east asia. Have abundant export experience and seift after-service, the uality of products and vompany reputation are widely praised by friends in this line.

We guard securely always "heavy quantity, speak the prestige" of operate the aim; take orders "expand enterprising, beg solid creative,It is strict to grasp the management, the business enterprise spirit of the excelsior" ; the management thought of the establishment "make people the center"with the management strategy of the "customer highest".The company to develop our country cardboard box profession for oneself term, cooperate with large customer with all sincerity,we will with continuously the product quantity that increases with the more perfect after-sales service satisfy the customer require with. Our wish and large customer to work hand in hand, creating together glorious!
