Brand Name : | QH |
Certification : | CE ISO |
Price : | Negotiate |
Payment Terms : | L/C, T/T |
Supply Ability : | 30 sets per year |
Delivery Time : | 90 days |
High Speed Automatic Corrugated Box Stitching Machine
1, the machine full computer control, easy operation, simple; can be stored 1000orders;
2, box without bottom and with cover can be stapled, too (to be specified when ordering);
3, 1-3 minutes to shift the sizes, simple and quick;
4, nail head power for the servo motor, the mechanical speed:1000nails per minute;
5, the paper feeding part adopts vacuum adsorption front belt feeding to ensure that the cartons are not skewed; the machine paper feeding front belt can be adjusted belt height alone, increased service life;
6, feed have side flapping device enables the sending paper neatly smooth;

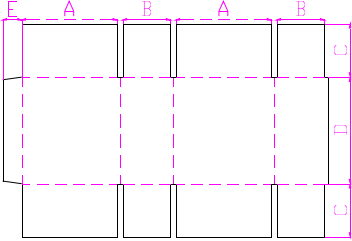

maximum (A+B)X2 | 2600mm | The minimum lengthA | 250mm |
minimum (A+B)X2 | 900mm | The maximum heightD | 1150 mm |
maximum(C+D+C) | 1200mm | The minimum heightD | 300 mm |
minimum (C+D+C) | 350mm | Nail tongue widthE | 35-40 mm |
The minimum roll coverC | 25mm | Mechanical length | 19000mm |
The biggest shake coverC | 560 mm | Machine width | 4050 mm |
The maximum widthB | 1050 mm | Machine weight(T) | 23 |
The minimum widthB | 200 mm | speed (nail / min) | 1000 |
The maximum lengthA | 1100 mm | Order | 1-99 |
![]() |
