High Speed 1800mm-II Type 5 Plys Corrugated Cardboard Making
Machine
| Model | Name | Unit/set | Note |
| HB-I | Hydraulic Reel Stand | 5 | Main spindle ¢ 242mm, hyperbolic heavy-duty rocker arm, tooth-type
clamp paper head, ventilated disc-type multi-point brake, hydraulic
drive up and down, left and right translation, and medium. Guide rail length 6000mm, trolley adopts 10mm middle plate welding. |
| SP-1-600 | Single Pre-heater (floor) | 4 | Roller ¢ 600mm, including pressure vessel certificate. Electric
adjustment angle. The wrap angle can adjust the heated area of the
paper within 360°. |

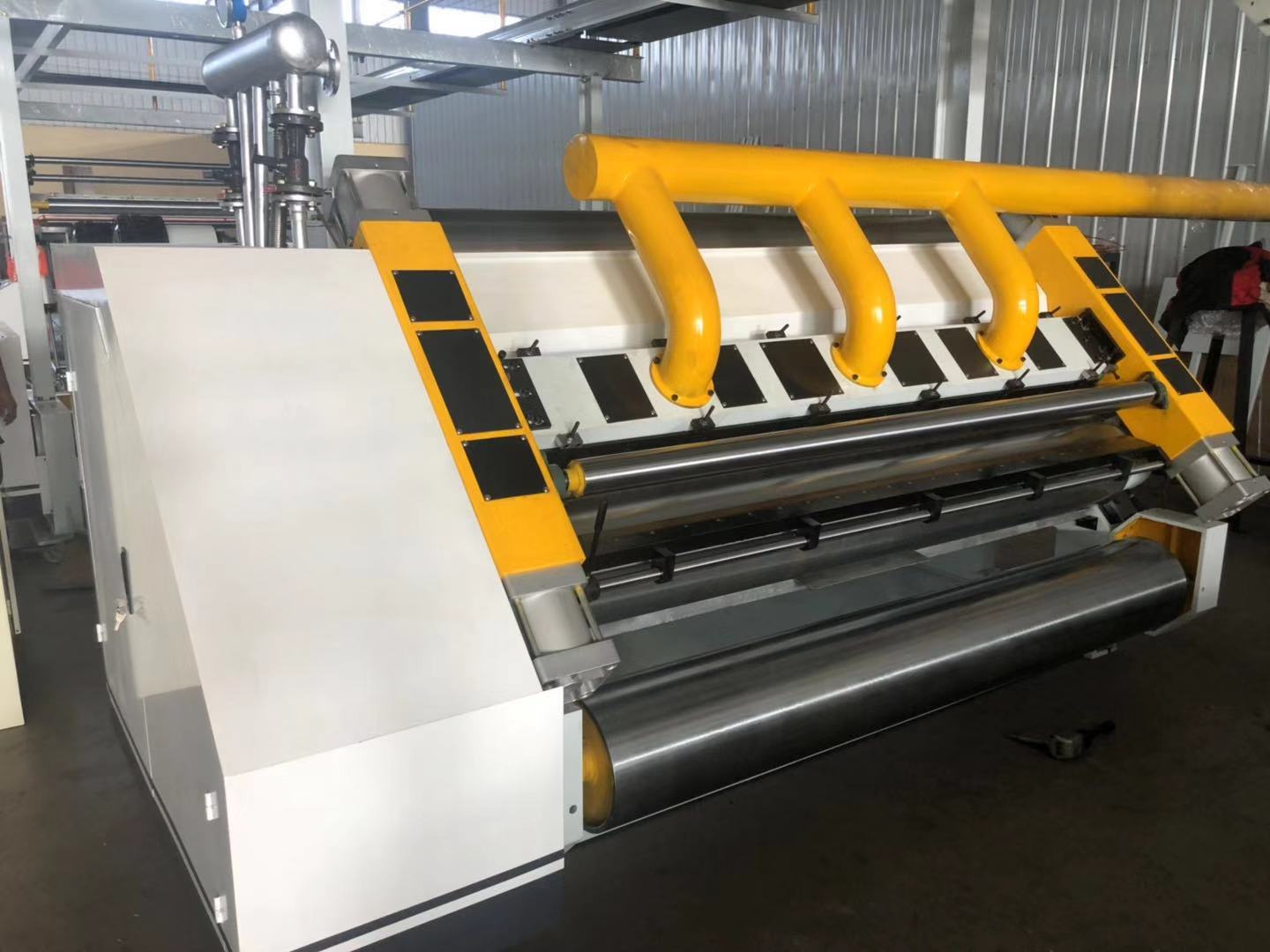

| 320B | Single facer | 2 | Corrugated main roll ¢ 320mm, material 48CrMo alloy steel.
Independent gearbox, universal joint transmission structure. |
| SP-3-600 | Triplex preheated | 1 | Roller ¢ 600mm, including pressure vessel certificate. Electric
adjustment angle. The wrap angle can adjust the heated area of the
paper within 360°.. |
| OHB | Double transport bridge | 1 | The main beam 200mm channel steel, independent variable frequency
motor driven paper transport, adsorption tension. Electric
correction. |
| CGM-F | Double glue machine | 1 | Coated roller diameter 269mm; engraved 25-line pit type net
pattern; independent variable frequency motor drive, PLC adjustment
glue gap and man-machine interface; glue digital display. |
| HPM | Double facer machine | 1 | Drying department 14 heating plates, 4 pressure plate, pneumatic
lifting pressure roller, using dense pressure roller. |
| FTKM | Electric adjustment thin blade machine | 1 | Electric adjustment knife, electric bias, 5 knife 8-wire type,
blade made of tungsten alloy steel. |
| NC-S120 | NC Cut off machine | 1 | Full AC servo control, energy storage brake, spiral knife
structure, oil-immersed gear drive, 10.4 inch touch screen display. |
| SMA-S | Stacker | 1 | Electrically adjust the cardboard size and pneumatically control
the lateral output cardboard. |
| ZQ | Steam system | 1 | Including equipment pipeline valves, steam traps, meters and other
steam components, customer-owned heat sources and pipelines. |
| ZJZ | Glue making system | 1 | Pipeline customers bring their own. The glue making device consists
of a carrier tank, a main tank, a storage tank, and a glue pump and
a back pump. |
1. Maximum production width of corrugated board: 1800mm
2. Design speed: 120m/min; Economic speed: 100m/min
Note: The paper for production line speed test should meet the
following requirements: (The surface temperature of equipment is
not lower than 172°C)
* The grade of the base paper must not be lower than Grade B
* The water content of the base paper is approximately: 11% ± 2%
* Face Paper: 100-250g/m2 * Core Paper: 100--250g/m2
* Paper tiles: 100-200g/m2
3, corrugated type combination: A, B, C, E (or selected by the
customer)
4, steam requirements:
* Steam volume 2500-3000Kg/Hr * Maximum pressure: 1.2Mpa
* Common pressure: 0.8-1.1Mpa
6, power supply: 380V 50Hz three-phase four-wire system
7, the equipment covers an area: about the specific length based on
the foundation foundation map
8, the device out of paper direction: according to the user's plant
to determine the drive left or right
9, equipment applicability, available A, B, C grade homemade base
paper or imported paper
