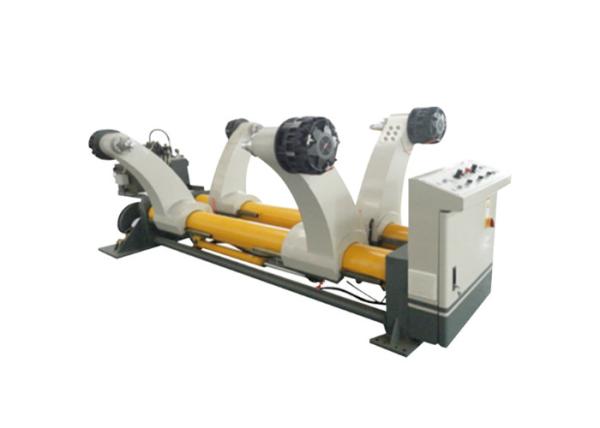

※ZJ-V5B hydraulic shaftless mill roll stand

structural feature:

• Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
• Brake adjustable adopts multipoint braking system.
• Every stand matched two sets paper car , and they can paper on the both sides at the same time.

technical parameters:

• The range of clamping paper:MAX1600mm MIN1000mm
• Clamping diameters:MAX￠1500mm MIN￠350mm
• Main shaft diameter of paper holder:￠242mm
• Gas source work pressure(Mpa):0.4---0.8Mpa
• Equipment size:Lmx4.3*Wmx1.8*Hmx1.6
• Single weight:MAX2000Kg

Hydraulic system parameters:

• Work pressure(Mpa):16---18Mpa
• Lifting hydraulic cylinder:￠100×440mm
• Clamping hydraulic cylinder:￠63×1300m
• Hydraulic station motor power:3KW --380V -- 50Hz
• Solenoid valve voltage:220V 50 Hz

Mainly purchased parts, raw materials and origin:
