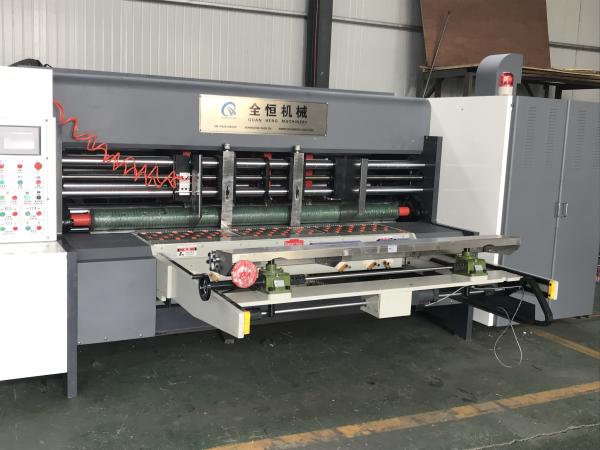

Lead edge feeder Electrical Adjust Rotary Slotter machine

1,Machine Clutch

1)Electric control machine clutch with alarm,when moving it will be alarm to make sure the safety.

2)Transmission shaft with safety clutch,Avoid wrong actions and damage the machine.

3)Pneumatic lock.

4)Main motor with start protection device.

2,Vacuum suction type lead edge feeder system

1)Lead edge feeder can less blocking of the paperboard.

2)Blower suction assist feed.Blower quantity can be adjustment.

3)Front flaper and back flaper adopt manual adjust the gap,feeder flaper electric adjust the gap.

3)Feeder wheel adopt PU polyurethane,long using life.

4)Suitable for 3ply 5ply 7ply ,include E flute.

5)With paperboard counting function.

3,Dust clean device

1)With dust clean device(cleaning brush),for clean paperboard surface and ready for print.

4,Paperboard feeding roll

1)Seamless steel tube,cover rubber,and balance treatment.

2)Downside paperboard transfer roller chrome.

3)Paperboard feeding roll up and down adjust range0-12mm.

5,Control parts(PLC)

1),Each unit with 10inch touch screen, easy control.

6,Zero point back device

Slotting unit(electric type)

1. Control prts:

1) Adopt electric control switch to adjust blade support, lift and rigtht and box height.

2) Paperbaord past gap manual adjust.

3) With sudden stop device

2. Slotting phase adjustment ,box height adjustment:

1) Slotting phase 360 degree adjustment

2) Phase zero point back function

3) Box height electric adjustment system

2. Press wheel

1) High strong press sharft,surface hard chrome

2) Press wheel and slotter knives support lift & right synchronization.

3. Slitting and slotter support

1) Slotter thickness 7mm,High quality alloy steel heat treatment.

2) Slotter,slitter,press wheel,pre-press wheel position auto adjustment.

3) Slotter min blade can be adjustment.

4) Slotter blade distance,box height size adjust adopt electric adjustment.

Main Spare Parts
