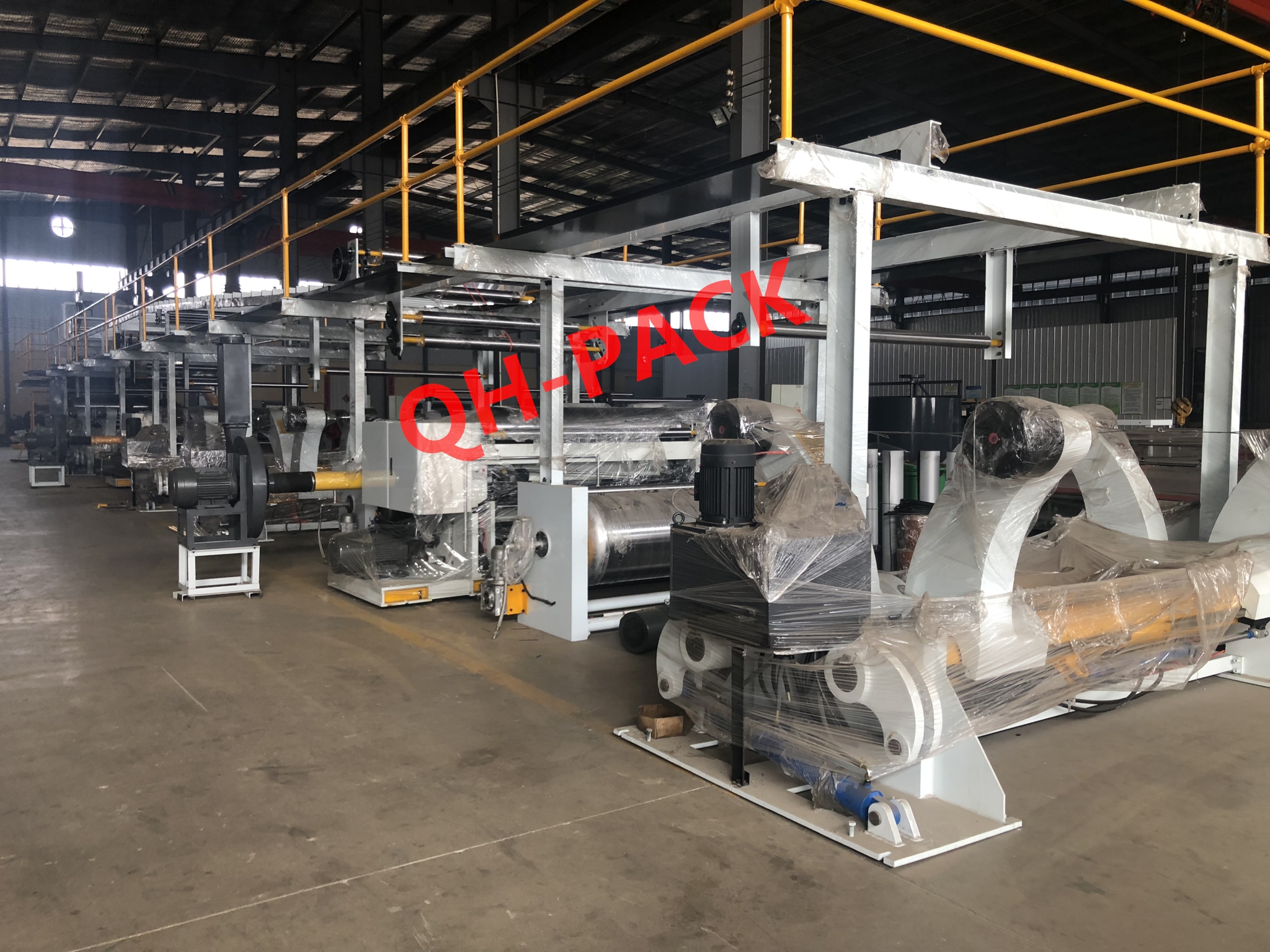

    QHCL1800mm - 5 Ply Corrugated Cardboard Production Line / Corrugator Line

    Ask Lasest Price
    Brand Name : QH-PACK
    Model Number : QHCL1800-5Ply
    Certification : CE ISO
    Price : USD 180000-210000 PER SET
    Payment Terms : L/C, T/T
    Supply Ability : 10 SETS/PER YEAR
    Delivery Time : 150 DAYS
    • Product Details
    • Company Profile

    QHCL1800mm - 5 Ply Corrugated Cardboard Production Line / Corrugator Line

    QHCL1800mm-5Ply Corrugated Cardboard Production Line

    Product Description
    ModelNameUnit/setNote
    QHMRS-1800HHydraulic Reel Stand5

    Main spindle ¢ 242mm, hyperbolic heavy-duty rocker arm, tooth-type clamp paper head, ventilated disc-type multi-point brake, hydraulic drive up and down, left and right translation, and medium.

    Guide rail length 6000mm, trolley adopts 10mm middle plate welding.

    QHPH-600Single Pre-heater (floor)4Roller ¢ 600mm, including pressure vessel certificate. Electric adjustment angle. The wrap angle can adjust the heated area of the paper within 360°.
    QHSF-280SSingle Facer2Corrugated main roll ¢ 280mm, material 48CrMo alloy steel. Cassette model, belt transmission structure.glue tray stainless steel
    QHPH-600Triplex preheated1Roller ¢ 600mm, including pressure vessel certificate. Electric adjustment angle. The wrap angle can adjust the heated area of the paper within 360°..
    QHOB-1800DDuplex Bridge1The main beam 200mm channel steel, independent variable frequency motor driven paper transport, adsorption tension. Electric correction.
    QHG-1800DDouble glue machine1Coated roller diameter 240mm; engraved 25-line pit type net pattern,glue tray stainless steel
    QHDF-1800Double Facer machine1Drying department 14 heating plates, pneumatic lifting pressure roller, using dense pressure roller.
    QHSS-1800EElectric adjustment thin blade machine1Electric adjustment knife, electric bias, 5 knife 8-wire type, blade made of tungsten alloy steel.
    QHNC-1800HNC Cut off machine1Full AC servo control, energy storage brake, spiral knife structure, oil-immersed gear drive, 10.4 inch touch screen display.
    QHAS-1800SStacker1Electrically adjust the cardboard size and pneumatically control the lateral output cardboard.
    ZQSteam system1Including equipment pipeline valves, steam traps, meters and other steam components, customer-owned heat sources and pipelines.
    ZJZGlue making system1Pipeline customers bring their own. The glue making device consists of a carrier tank, a main tank, a storage tank, and a glue pump and a back pump.
    ZJEElectric Part1Frequency converter use Delta brand.electric part use Schneider brand.
